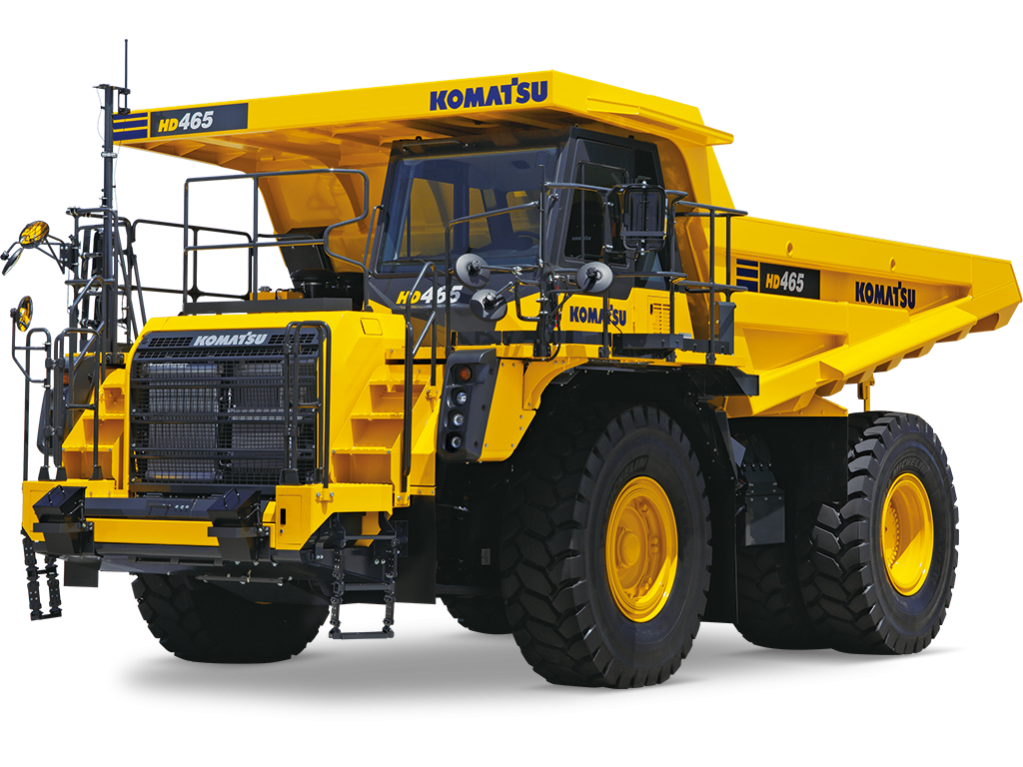

Komatsu HD465-8 Off-Highway Truck

ENGINE

• Air cleaner, dry type, two stage (qty two)
• Automatic Idling Setting System (AISS)
• Auto Idle Shutdown
• Electric priming fuel pump
• Engine secondary stop switch
• Engine, Komatsu SAA6D170E-7, six cylinder, turbocharged, air/air aftercooled, EGR cooled, diesel; Gross HP (SAE J1995): 775HP (578kW) / 2000 RPM; Net HP (ISO
• 9249/SAE J1349): 724HP (540 kW) / 2000 RPM
• Fan, hydraulically driven, reversible
• Komatsu Diesel Particulate Filter (KDPF) (qty two)
• Starting aid, intake manifold pre-heater
• Variable geometry turbocharger

ELECTRICAL SYSTEM

• Alternator, 90 ampere , 24 volt
• Back-up alarm
• Batteries, 4 x 12 volt 240 Ah, 910 CCA
• Battery disconnect switch
• Horn, electric
• Lights
• – Back-up light, rear
• – Engine compartment ligh
• – Head lights, halogen (high and low beam)
• – Side working lights, LH and R
• – Stop and tail lights (LED)
• – Turn signal, (two front, two rear) (LED) with hazard switch
• Starting motors, 2 x 7.5W direct electric 24V

POWER TRAIN AND CONTROLS

• Seven-speed transmission, fully automatic with K-ATOMiCS
• Komatsu Traction Control System (KTCS)
• Front brake, twin caliper, disc type
• Parking brake
• Rear brake, oil cooled, multiple disc, fully hydraulic controlled
• Skip shift function

OPERATOR ENVIRONMENT

• Cab, with built in ROPS/FOPS
• – 12 Volt outlet (qty two)
• – Automatic climate control system with cab pressurization
• – Auxiliary steering system
• – Beverage holder (qty two)
• – Body hoist control, electric
• – Cigarette lighter and ashtray
• – Dome light and reading light
• – Door, LH and RH
• – Lunch box tray and storage trays
• – Machine monitor with seven-inch color LCD display
• – Operator seat, air suspension type, heated, ventilated, with three-point retractable seat belt (3″ 75 mm wide lap belt and 2″ 50 mm wide, high visibility shoulder belt)
• – Power windows, LH and RH
• – Radio, AM/FM with aux terminal
• – Rearview mirror, outside cab mount, heated (LH & RH)
• – Rearview monitoring system with dedicated monitor
• – Steering wheel, tilt and telescopic
• – Sun visor (qty two)
• – Tinted glass (front, laminated glass)
• – Trainer seat, folding, with two-point retractable seat belt (3″ 75 mm wide)
• – Wiper/washer, front, with intermittent setting

GUARD AND COVER GROUP

• Catwalk with handrails
• Deck rail
• Driveline guards, front & rear
• Engine underguard
• Exhaust thermal guard
• Front handrail, over radiator
• Mudguards
• Transmission underguard

MONITORING SYSTEM, ELECTRONIC DISPLAY ITEMS

• Instrument panel gauges
• – Coolant temperature
• – Hour meter (service meter)
• – Retarder oil temperature
• – Speedometer with odometer
• – Tachometer
• – Torque converter oil temperature
• Warning lights
• – Engine coolant temperature
• – Engine coolant level
• – Engine oil pressure
• – Parking brake
• – Retarder oil temperature
• – Torque converter oil temperature

OTHER

• Angled front stairs with hand rails
• Automatic retarder speed control (ARSC)
• Centralized lube block
• Dump counter
• Ecology guidance and ecology gauge
• Fast-fill coupler for fuel tank
• Filler cap and cover locks
• Front brake cut-off system
• Hydropneumatic suspension (front & rear)
• Less body (must select body)
• Mirror, rearview, underview
• PM service connectors
• Rock ejector bars
• KOMTRAX Plus® telematics package with integrated payload meter (PLM), satellite communication and WiFi
• Wheel chocks with storage brackets

BODY

• Alternate exhaust configuration (RH side discharge)
• Body
• Body liner

TIRES (24.00 R35)

• Michelin XDTB
• Bridgestone VRLS
• Michelin X-Quarry
• Michelin X-Traction Super Terrain
