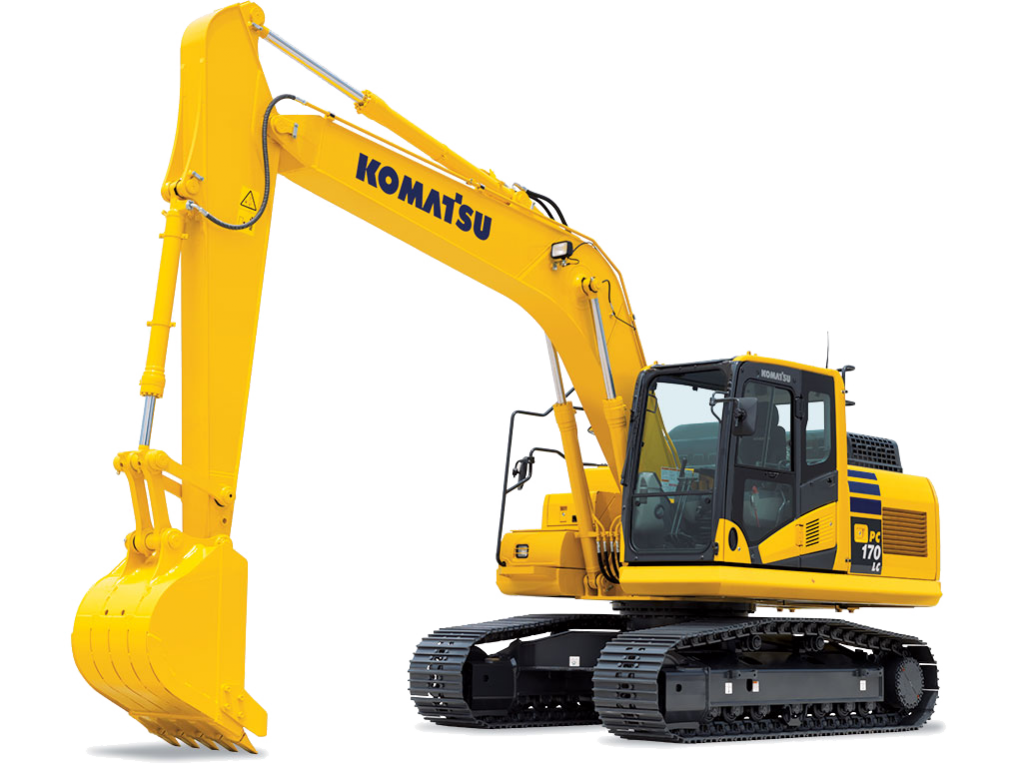

Komatsu PC170LC-11 Hydraulic Excavator

Komatsu PC170LC-11 Hydraulic Excavator Information

The PC170LC-11 is a highly versatile, utility-sized excavator for all types of jobs requiring a smaller machine with big power. New to the PC170LC-11 is an enhanced Power Mode, featuring up to a six percent improvement in productivity, compared to the PC170LC-10. In addition, six selectable working modes and selectable, one and two-way attachment flow, extends versatility. The PC170LC-11 is EPA Tier 4 Final emissions compliant, without the need for a Diesel Particulate Filter (DPF). A viscous fan clutch helps maintain fuel savings and reduces engine load when maximum cooling is not required. An upgraded seven-inch monitor includes KOMTRAX® level five telematics, which features operator ID, DEF management, and auto-idle shutdown. Two counterweight options are available to match customer needs. The lighter 6,063 lb option makes transport on a tag trailer easier, while the heavier 7,143 lb option offers greater stability for equipment such as a bucket/coupler/thumb combination.

View More Details on Komatsu.com

Standard Equipment

• Alternator, 85 Ampere, 24V
• AM/FM radio
• Automatic engine warm-up system
• Automatic climate control/air conditioner/heater/defroster
• Auxiliary input (3.5mm jack)
• Batteries, large capacity
• Battery disconnect switch
• Boom holding valve
• Converter, (2) x 12V
• Dry type air cleaner, double element
• Electric horn
• EMMS monitoring system
• Engine, Komatsu SAA4D107E-3
• Engine overheat prevention system
• Extended work equipment grease interval
• Fan guard structure
• Fuel system pre-cleaner 10 micron
• High back air suspension seat, with heat
• Hydraulic track adjusters
• KOMTRAX® Level 5
• Large LCD color monitor, high resolution
• Lock lever
• Mirrors, (LH and RH)
• Operator identification function
• Operator Protective Top Guard (OPG), Level 1 (ISO 10262)
• Pattern change valve (ISO to BH control)
• PPC hydraulic control system
• Pump/engine room partition
• Radiator and oil cooler debris screen
• Rear reflectors
• Rearview monitoring system (1 camera)
• Revolving frame undercovers
• ROPS cab (ISO 12117-2)
• Seat belt, retractable, 76mm 3″
• Seat belt indicator
• Secondary engine shutoff switch
• Service valve
• Shoes, triple grouser, 600 mm 24″
• Skylight
• Slip resistant foot plates
• Starter motor, 4.5kW
• Suction fan with viscous clutch
• Track frame swivel guard
• Travel alarm
• Two speed travel with auto shift
• Working lights, 1 cab LH side/1 boom RH
• Working mode selection system

Optional Equipment

Arms

• 2900 mm 9’6″ arm assembly
• 2610 mm 8’7″ arm assembly
• 2900 mm 9’6″ arm w/ one actuator piping
• 2610 mm 8’7″ arm w/ one actuator piping

Boom

• 5150 mm 16’11” boom assembly
• 5150 mm 16’11” boom w/ one actuator piping

Counterweight

• 2750 kg 6,063 lb
• 3240 kg 7,143 lb

Cab guards

• Full front guard, OPG Level 1
• Full front guard, OPG Level 2
• Bolt-on top guard, OPG Level 2

Other

• Hydraulic control unit, 1 actuator
• Shoes, triple grouser, 700 mm 28″
• Shoes, triple grouser, 800 mm 32″
• Sun visor
• Rain visor
